PRODUCT
/ Massage device

YEAR

/ 2021

DURATION
/ 12
WEEKS

INSTRUCTOR
/ Jeffrey Jones


ATMOS - LOGO.png

Atmos is an innovative handheld massage device that merges Chromotherapy principles with AI data analysis functions, offering users a highly professional and efficient massage experience.

A Better solution for your muscle recovery


Have you ever experienced muscle pain for a few days following each training session?

" DOMS "

A phenomenon known as delayed onset muscle soreness


What causes DOMS?

  • Muscle Spasm: Muscle activation leads to a compression of local blood vessels and ischemia (reduction in blood supply), resulting in muscle spasm.

  • Connective Tissue Damage: Muscle fibers have sheaths that surround them, and the strain on these fibers may cause pain or inflammatory response.



  • Muscle Damage: The workout causes physical microtrauma to the muscle tissue.

  • Inflammation: The 12–24 hour delay of pain onset—a hallmark of DOMS—may indicate an additional inflammatory response, causing secondary damage after the initial insult.


The effective way to relieve DOMS


Post-Exercise massage

Massage can help reduce muscle tightness caused by DOMS. Tightness of muscles can be a common symptom associated with DOMS. Massage can work directly onto the areas of tightness, restoring blood flow and relaxing the muscles. Massage also helps to treat symptoms of DOMS by maintaining flexibility.

Why do people rarely receive professional muscle massage therapy after exercise?

20190620131326-Example-of-Personal-Trainer-Business-Ideas-Bigstock-4000pxW-X-2670pxH-copy.

Lack of relevant expertise in kinesiology and rehabilitation

Despite rising concerns about population health and the average gym-goer severely lacking in fitness know-how, in today's market, only an estimated 10% of fitness club members purchase personal training services.


Prefer not to make additional investments

Cost: Professional massages can be expensive.

Time constraints: Booking a professional massage requires scheduling and can take a significant amount of time, which may not be feasible for individuals with busy schedules.


Due to epidemic, more people psychologically reject direct physical contact

Physical distancing and self-isolation created a direct effect on mental health.
individuals may feel uncomfortable with the level of exposure or the idea of being touched by a stranger.

MARKET TREND

下载 (1).jpg

Due to the impact of the epidemic, an increasing number of individuals are recognizing the significance of maintaining their physical well-being. Consequently, there has been a significant surge in demand within the health and sports industries. Notably, the field of physical rehabilitation and maintenance has experienced substantial growth, with a particular emphasis on the market demand for massage equipment.

The Handheld Massagers Market is estimated to grow from USD 9.1 billion in 2020 to USD 12.8 billion by 2026 at a healthy CAGR of 5.9% during the forecast period.

The demand for handheld massagers are mainly driven by increasing rates of urbanization, the rise in disposable incomes and the ease of use of handheld massagers is driving the increased global sales of this product.


Advantages of handheld massager


Muscle recovery and pain relief

Convenience and accessibility

Time-saving

Customizability and versatility

Cost-effective

Disadvantages of handheld massager

icon w_edited.png

Potential misuse and injury

Incorrect use or excessive pressure from a fascia gun can potentially cause muscle bruising, discomfort, or injury.

Lack of expertise knowledge

Fascia guns cannot replicate the human touch and personalized expertise provided by a professional massage therapist.

Forget to use

People often struggle with finding a proper storage place for their fascia gun, as well as remembering to charge it and keeping track of the corresponding charger, leading to potential inconvenience and loss.

What other treatments can promote muscle relaxation and improve blood circulation?

Chromotherapy

Chromotherapy, also called color light therapy, is the process of restoring balance to the body by applying color.

Chromotherapy could reduce swelling, relieve pain, decrease inflammation, accelerate open wound healing and greatly reduce overall recovery after medical/surgical procedures. Patients have demonstrated increased range of motion, decreased muscle tension and spasm, and improved circulation.


WHAT IF ?

Multifunction

By combining Chromotherapy and massage therapy, a more professional and efficient massage rehabilitation experience can be achieved.

Visually pleasing

Designing the product itself as a work of art display allows for effortlessly accessible and user-friendly.

Intelligent

Utilizing AI to automatically analyze the user's physical activity level and health conditions enables the provision of more accurate and professional massage treatment suggestions.

IDEATIONS & PROTOTYPE

IDEATION
DYSON-Atmos-process book_edited.jpg

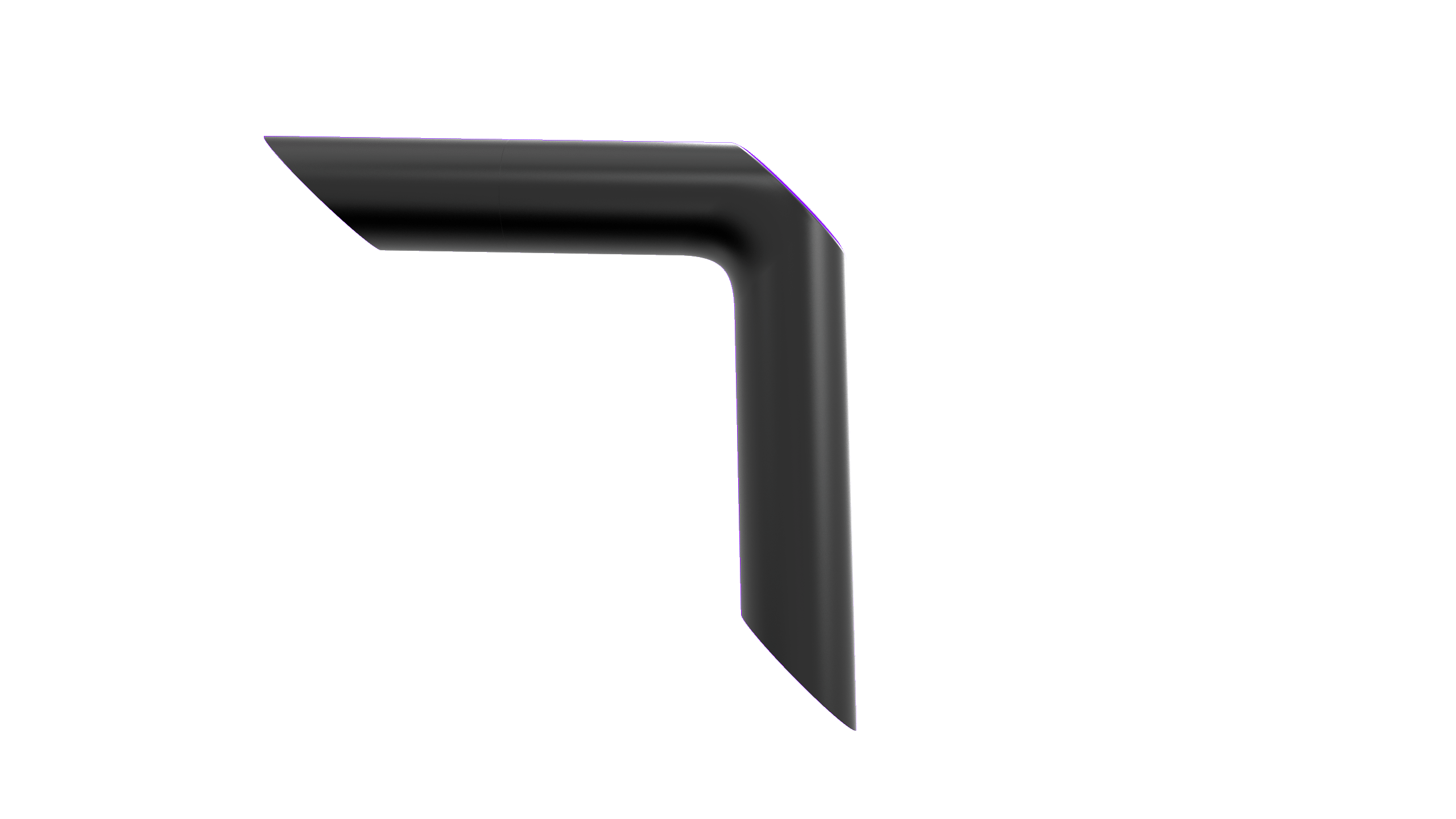

Angle

Radian


PROTOTYPE TESTING

  • Can the angle stand independently

  • Whether the shape is suitable for the hand

  • Whether the function can be used effectively

  • Determination of scale

CMF


FINAL DELIVERY

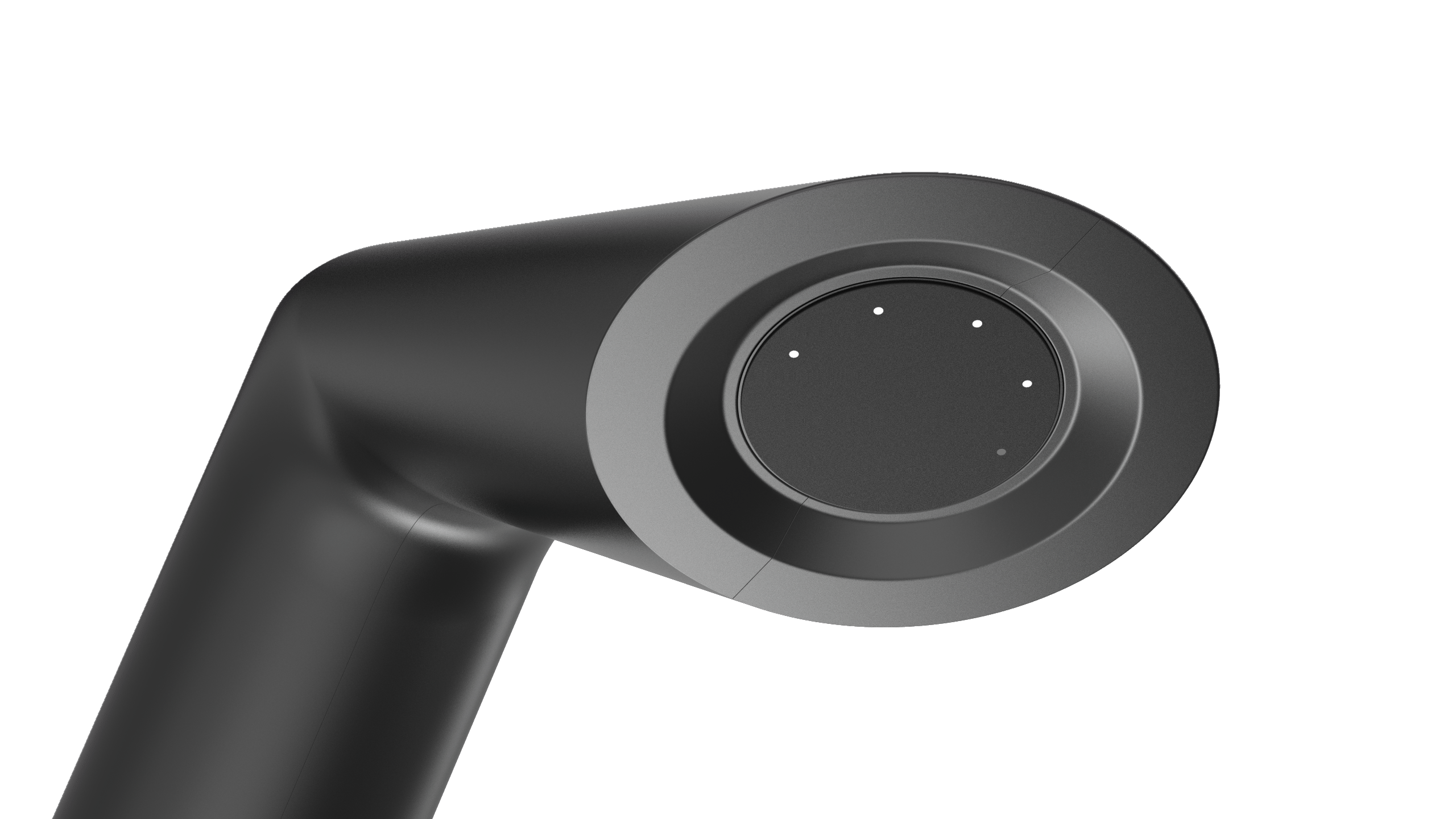

Press to adjust the massage mode

Level 1: Relax Mode
( 1200 RPM / 20Hz )

Ideal for when you’re ‘at rest’ or gradually lowering your activity to transition into a restful night’s sleep.

3 - 4 minutes
per targeted area

Level 2: Post-Exercise Mode
( 1700 RPM / 28.3Hz )

At this frequency the massage gun increases your blood circulation, helping prevent muscle pain, soreness and aches.

2 - 3 minutes
per targeted area

Level 3: Pre-Exercise Mode
( 2700 RPM / 45Hz )

Vibration frequency enhances circulation, supplying oxygen and nutrients to tissues for better performance and flexibility, reducing the risk of injury.

30 seconds - 2 minutes
per targeted area

Level 4: Pro Mode
( 3200 RPM / 53.3Hz )

Specifically designed for high-intensity massage, Pro Mode is effective in addressing adhesions in large muscle groups such as your glutes and quads.

30 - 60 seconds
per targeted area

Level 5: AI Mode
( 1700 RPM / 28.3Hz )

The AI system analysis training volume, personal body data, and assess muscle state, generate a customized massage plan with varying intensity, and automatically adjust as needed.


Bullet Head

For deep tissue in meridian joints, palms, soles etc

Flat Head

For relaxtion and shaping of various muscle parts

Spherical Head

For large muscle groups

Arm, Back, thigh and calf

U Shape Head

Suitable for shoulder,cercical, spine and bilateral muscles

Air compression Head

For sensitive spots muscle relaxation

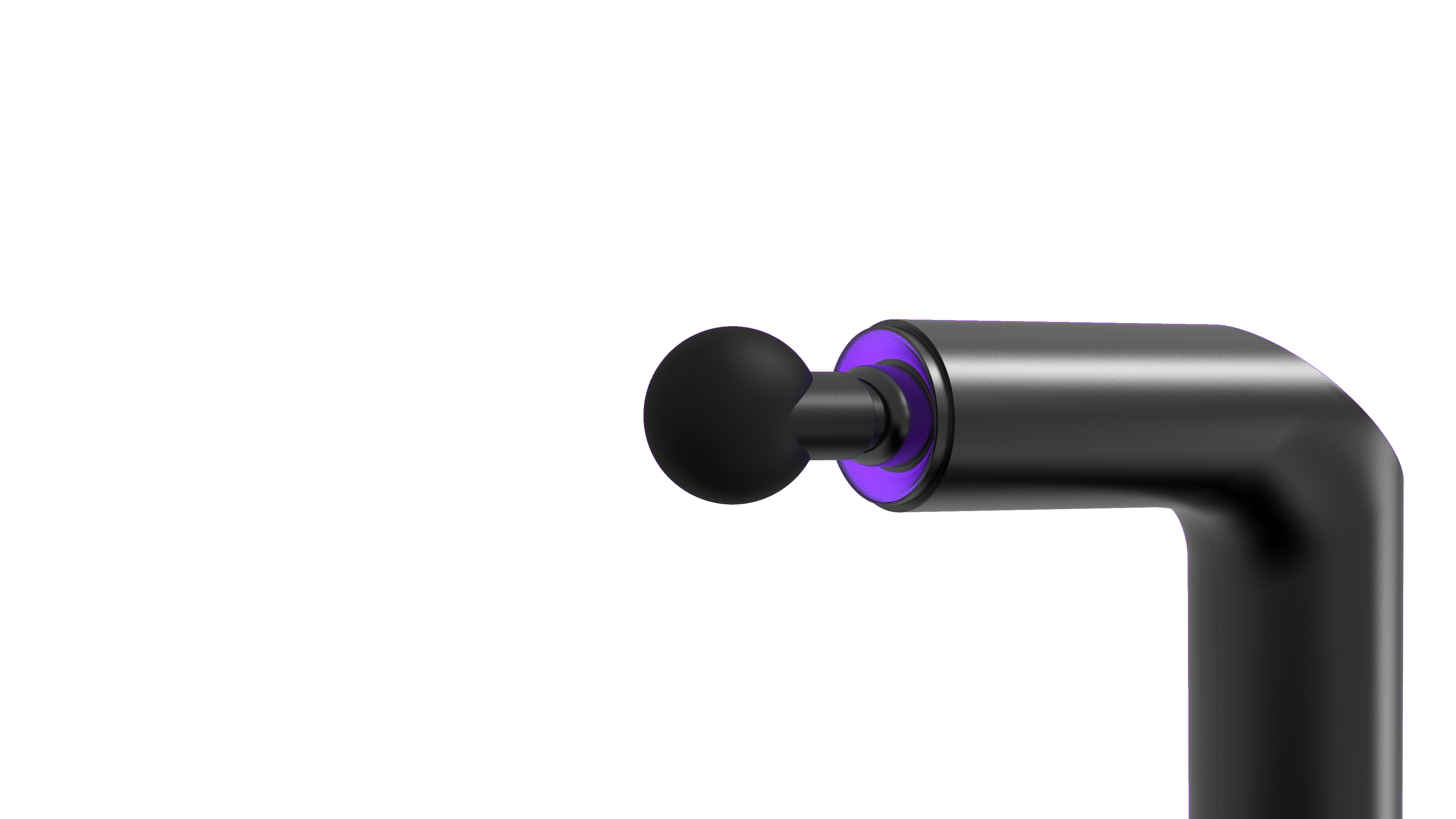

Rotating the knab to switch different light moods

BLUE LIGHT

Wavelength 450-495nm



  • Antibacterial

  • Calm the nerves


   PURPLE LIGHT

         Wavelength 495-570nm

  • Relieve blood vessel pressure

  • Promote blood clot dissolution

  • Build muscles


  RED LIGHT

   Wavelength 620-750nm

  • Relief the pain

  • Promote wound healing

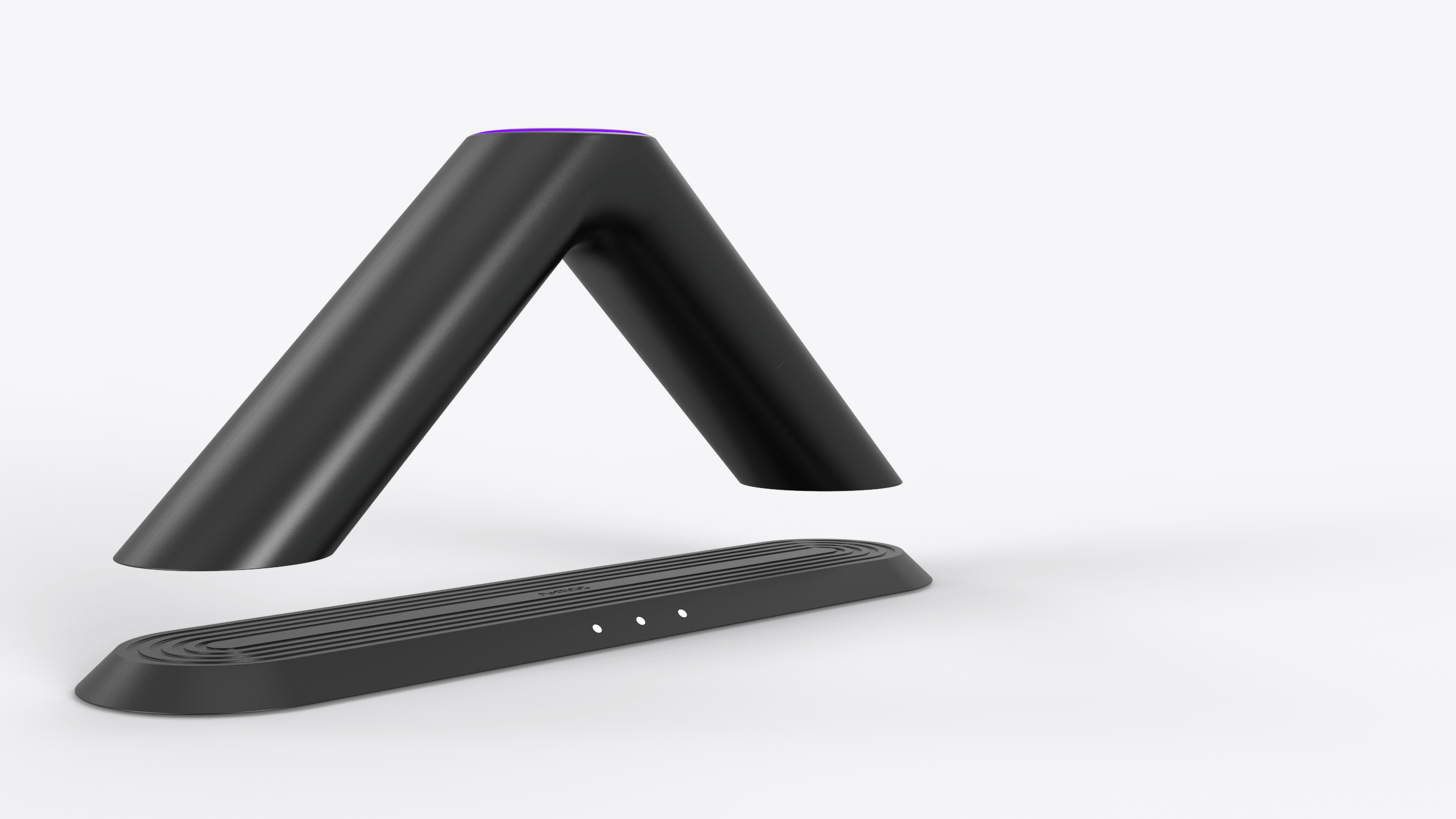

Wireless charging pad

Qi” wireless power standard

  • Magnetic connection

  • Wireless coils on both sides

  • Light display battery states

Atmos-expolded view1.136.jpg

PACKAGE & POSTER DESIGN


A better way to experience muscle recovery

ATMOS - LOGO.png

DISCOVER MORE DESIGN PROCESS ON COMPUTER VERSION
